Learn to Solder Kit (Part V)

PCBs

I’m almost set for the Zoom Milwaukee Symposium this week. I’ll be in the Maker Plaza teaching people how to solder with the DIY kit I’ve been working on for the last few weeks. (Check out Part I, Part II, Part III, and Part IV if you haven’t seen them yet.)

PCBs

It doesn’t look like a lot, but there’s over 100 PCBs that were made at home. I cut all the vinyl, etched them, drilled them, cut them apart, and sanded the edges.

LEDs

There are a few options for LEDs, ranging from plain green and blue to flashing red and flickering orange. (There’s probably over 400 LEDs here.)

Resistors

The resistor you use will depend on the LED you choose. I’ll be able to talk about limiting current and how it is calculated for different LEDs.

Batteries

And of course there are batteries. I’ve got 100 CR2032 cells, which came in just under $18 for all of them thanks to ebay.

Binder Clips

There are 144 binder clips to hold the batteries to the PCBs. Again the cheapest I could find, thanks to Amazon.

Wire & Solder

A few spools of solid core wire and some solder. (I’ve got more solder than this, not that we’ll need a lot, but multiple rolls are helpful.)

Magnets

I also went crazy and got some Neodymium magnets in case people want to attach their PCB to other things. (I tried to arrange the magnets a bit more orderly for the photo but it was impossible!)

Zoom PCB

Here’s the back of the PCB. You can see how the board has been etched to leave just the copper traces to complete the circuit. (The ring around the edge is just a guide for the cutting and sanding.)

Zoom PCB

Here’s the front of the PCB. You can see the LED, resistor, and the wire that leads to the back through the hole which serves as the battery connector. And of course the binder clip holds the battery in place.

Zoom PCB

You can remove the arms of the binder clip if you want to stand the PCB up, attach it to something, or just be more streamlined.

Zoom PCB

Zoom PCB

PCB Wearable

And hey, with the addition of the magnet you can even turn it into a wearable! Be the envy of the Zoom After Party (wait, is there one?) with your flickering, flashing, or constantly lit LED PCB!

This is just one post in a series, check out the other posts as well:

Categories
Uncategorized

Learn to Solder Kit (Part IV)

This installment of the Learn to Solder Kit series will focus on the cutting and sanding of the PCBs we’ve been creating. This is the loud and messy part. (Check out Part I, Part II, and Part III if you haven’t seen them.)

pcb-cut-sand-0316

We start with taking one of the larger board to the bandsaw and cutting apart the six boards. (The bandsaw, like many of my tools, belonged to my father. It’s quickly become one of the most used tools in the shop, right after the drill press.)

pcb-cut-sand-0318

In an earlier revision of the board I left very little room to cut things apart. I just barely had the width of the saw blade, so as I etched more boards, I revised the design and increased the space to make things a bit easier.

pcb-cut-sand-0324

One large board cut down to six individual boards. I also cut off any excess on the edges to make the sanding process that comes later easier.

pcb-cut-sand-0329

You can see that straight lines aren’t the order of the day, which is fine. Our goal with the cutting apart is just to get things cut apart. We’ll straighten out the edges later…

pcb-cut-sand-0328

Here’s a big pile of individual boards ready to have their edges cleaned up. You’ll noticed the thin edge pieces that got cut off as well, which saves us time (and dust!) when sanding.

pcb-cut-sand-0337

Using the disc sander is pretty quick, but it’s also dusty, and probably my least favorite part of the process. Also, the disc sander is a cheap model someone gave me, and while I’m thankful for it, it’s loud and vibrates way more than it should.

pcb-cut-sand-0340

Cleaned up edges, courtesy of the disc sander. We’ve finally got those straight lines we didn’t get on the bandsaw.

pcb-cut-sand-0341

Once we have those nice clean sides on the board it’s time to round the corners. This is the part that requires a some finesse to make it nice. Sometimes I get great results, and sometimes I go quickly and say “good enough!” because I’ve got 20 more boards to do.

Oh, you might also notice a bit of “fuzz” on the edges…

pcb-cut-sand-0347

Here’s the back side of the board, where you can more clearly see the fuzz left from the sanding process. This is easy to clean up.

pcb-cut-sand-0350

We just lightly clean the fuzz off using the belt portion of the sander. Every now and then I drop a board while doing this and have to fish it out of the exhaust port. It’s annoying.

pcb-cut-sand-0355

Here’s our nice clean board. It’s been cut apart from the larger board, and then sanded to get straight edges, given rounded corners, and cleaned up of any fuzz. Ready to go!

pcb-cut-sand-0360

A big pile of finished boards at the end of the night. I can only take so much sanding in one session. Right now I’ve got 40 completed boards, and another 25 that need to be sanded. With a goal of 100 total I’ll need to etch, drill, cut, and sand about 6 more large boards (to get 36 individual PCBs) in the next two weeks in time for the Maker Plaza at the Zoom Milwaukee Symposium!

This is just one post in a series, check out the other posts as well:

Categories
Uncategorized

Learn to Solder Kit (Part III)

If you’ve been following along as I develop a Learn to Solder Kit (see Part I and Part II) you’ll know that after etching the boards, we’ll need to add holes for all of the through-hole components that will be soldered into place.

dremel-drill-press

I’ve been using a Dremel Drill Press we have in the Physical Computing Lab at UWM to drill all the holes. The bits are tiny, at 1mm or less in diameter. I’ve broken two already, so I’ve got a bunch more on order to replace the broken ones. The first one I broke right when I started drilling boards, probably because I was trying to drill a bit too fast. It’s important to remember that the bit needs to do the work of cutting. The tiny tools don’t work quite like the big tools you can be rough with. The second bit I broke was due to moving too fast, basically I’d drilled a ton of boards and was getting near the end and just didn’t take my time when moving the board, and slid it a bit before I fully lifted the bit out of it. Oh well…

drilled-boards

Here’s a collection of drilled boards. Some are cut apart, and some are not yet cut apart. (We’ll cover the “cutting” part in a future installment.)

drill-wire-hole

You’ll notice there’s one hole that is much larger than the rest. That hole is for a wire to feed through, and I drill that hole with my big drill press. The large copper pad you see is just used as a guide, and gets obliterated by the drill.

Drilling the large holes is a quick and easy operation compared to the smaller holes for the components. You’ll notice that this drilling leaves a bit of “crap” around the hole after the drill bit is lifted out of the material, so we’re going to clean that up…

cleaning-bit

Using a much larger bit (and our hands instead of the drill press) we just lightly twist the bit around a few times in a clockwise direction. This is enough to let the bit shave away the excess material. It helps to have sharp drill bits when doing this. This too is a quick operation, with just a few twists for each hole, on the front as well as the back. Clean holes are good holes!

clean-hole

Here’s the difference between a cleaned up hole (left side) and a bunch of non-cleaned up holes. It is an extra step to clean things up, but when you make things (and you care) it’s just something worth taking the time to do…

Now, as I’ve mentioned, I’ve been using the Dremel Drill Press at UWM for the component holes, and while it works fine, the semester is over, so I won’t be there twice a week, so I’ve been thinking about other solutions for drilling all the holes.

old-dremel

I could buy a Dremel Drill Press for $35 and have our friends at Amazon deliver it in two days, but there’s a few issues with that, the first of which is, my Dremel tool is old, like really old, like 25 years old maybe? Perhaps more? It belonged to my dad, and maybe even his dad. It’s old, but it works great, and I’m not planning to replace it… and sadly, I don’t think it fits the modern Dremel Drill Press, at least not without modifications.

I’ve also heard from my pals over at Evil Mad Scientist Laboratories that the Dremel Drill Press lacks precision for some jobs. They like the Vanda-Lay Industries Drill Press Plus, which looks pretty solid. It’s not cheap though. There’s also the DIY press Bryan Cera made. I could certainly go the DIY route, and there’s a few other options on Thingiverse to choose from.

Right now though, I probably shouldn’t be spending time trying to DIY up my own solution to a miniature drill press since I can head over to Milwaukee Makerspace and use what we have there. I know we’ve got a “ProtoDrill” thing that drills out boards. It drills from the bottom, and has a foot switch to control it. It didn’t work amazing last year when I tried it, but I’m guessing there’s a few tips to using it I wasn’t aware of. There’s also a bunch of newer Dremel tools and a mini press at the space. The fine folks at Dremel were kind enough to donate some nice tools to us after Maker Faire Milwaukee in 2014.

generic-presses

For my immediate needs, I can drill holes at a variety of makery places around Milwaukee, so I’m not too concerned about a solution for my home shop. I have seen a few generic “rotary tool” drill press stands, which might be easily adaptable to work with my old Dremel tool. If I don’t go the DIY route, I may just grab one of those.

Update: I built my own.

This is just one post in a series, check out the other posts as well:

Categories
Uncategorized

Learn to Solder Kit (Part II)

If you haven’t read the first installment, check out Learn to Solder Kit (Part I) to get up to speed.

Since I’m etching my own boards, there’s a number of steps in the process. I’ve covered it all in the photos below, and I’ll add in a bit of text to explain things.

pcb-etching-0180

I start with cutting vinyl on a Silhouette Cameo. Any vinyl cutter will do, this just happens to be the one I have at home. (We have the same model at Milwaukee Makerspace, and the DCRL has a much larger vinyl cutter.)

pcb-etching-0182

The vinyl after being cut. I’m using old scraps of various sizes, and I’ve got an old blade, and an old cutting mat, and sometimes it cuts almost all the way through the vinyl, but for this application it all works out fine.

pcb-etching-0183

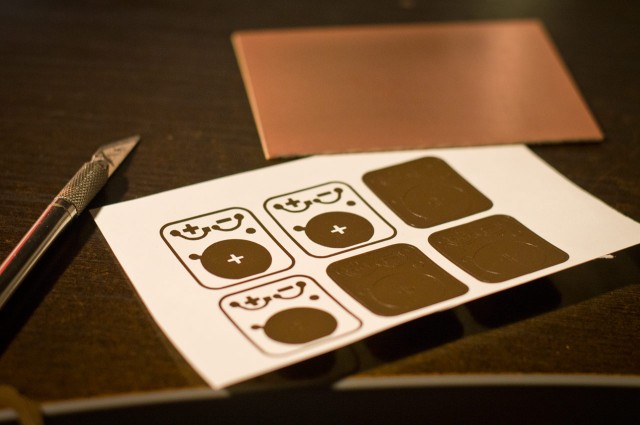

Next is weeding, or removing all of the bits of vinyl we don’t need. I tend to use an X-ACTO knife to pick and grab off the pieces. It works well for tiny things like this.

pcb-etching-0189

The vinyl is all weeded and we’ve got a piece of transfer paper ready to apply. (The transfer paper sticks to the top of the vinyl just enough to pull it from the backing sheet.)

pcb-etching-0191

Once the transfer paper is down on the vinyl I press hard and rub it on good so it’ll adhere to all the tiny pieces.

pcb-etching-0192

Peeling back the transfer paper is best done slowly, checking to see if any vinyl doesn’t get pulled up. Occasionally you have to press it down again to grab a piece of vinyl that didn’t stick properly.

pcb-etching-0195

Here’s the transfer paper with all the bits of vinyl stuck to it. At this point we can stick it down onto the copper board that will be our PCB. (I usually give the copper board a light scrubbing with steel wool before sticking the vinyl on.)

pcb-etching-0199

Once again we press hard and rub the transfer paper onto the copper board, and then peel back slowly making sure we don’t lose any tiny bits of vinyl in the process…

pcb-etching-0213

And here’s our copper board with the vinyl resist in place. The vinyl works as a mask to protect the copper from being etched away. Anywhere you don’t see vinyl you won’t see copper when we are done.

pcb-etching-0221

Over to the PCB etching machine! It’s what we might call “janky” because I constructed it very quickly to etch some PCBs and it worked well enough that I never built a better one. I did upgrade from a servo to a DC gear motor at some point, but the bearings are still riding on smooth rods much smaller than they should be. Again, it works, so I don’t mess with it.

pcb-etching-0223

After adding equal parts hydrogen peroxide and vinegar to the tank (which is a food container from Noodles & Company) I put the copper board into the solution…

pcb-etching-0224

The board tends to float at first so I push it down with a brush. (I also use the other end of the brush to wipe away the solution while the board is etching.)

pcb-etching-0230

Yes, my chemical mix is hydrogen peroxide and vinegar, with a dash of salt. There are other things you can use, but this combo isn’t really dangerous, and can be easily disposed of by pouring down the drain with plenty of water. If I can avoid harsh acids, I will. It does take a bit longer to etch, but that’s where the salt comes in.

pcb-etching-0232

Once I start the agitation process to keep the board and liquid moving back and forth, I throw a bit of salt into the mix, which activates things and tends to foam up a bit. The foam means it’s working!

pcb-etching-0242

This is about 45 minutes into the etching process. You can see that the copper is nearly gone all around the edges, but not as much in the middle.

pcb-etching-0257

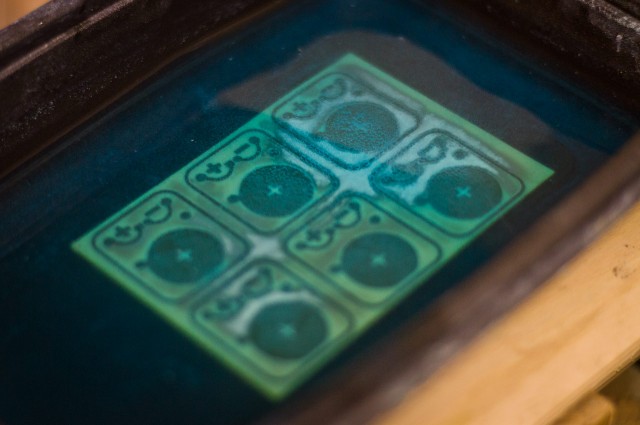

Here’s the 50 minute mark after adding a pinch more salt to the mix. It’s mostly etched but still has more copper to eat.

pcb-etching-0258

At about an hour and ten minutes the board is fully etched. Time tends to vary depending on if I reuse the solution or start fresh. I’m typically not in a hurry and tend to reuse solution a lot, which does take longer, but means I’m wasting less solution.

pcb-etching-0262

Once the board is done I pull it out and use a razor blade to gently remove the pieces of vinyl. They tend to come off fairly easy, but they are wet and stick to everything, including fingers, razor blades, the board, and anything else within 50mm of the work area.

pcb-etching-0265

After the vinyl is removed I wash and rise the board and then dry it and give it another quick scrub with steel wool.
We’ve now got a PCB, or a “Printed Circuit Board” as they are commonly known. (Somehow almost everything I do revolves around “printing” somehow…)

That covers the etching, so the next steps are to drill all the holes and to cut the boards apart.

Oh, you’ll also want to check out this mesmerizing video featuring the PCB Etching Machine in action. Agitation is the name of the game!

This is just one post in a series, check out the other posts as well:

Categories
Uncategorized

Learn to Solder Kit (Part I)

Zoom Milwaukee

Some of the folks I know at UWM are putting on a symposium called Zoom Milwaukee, which will focus on craft, culture, innovation and making. They’ll also have a Maker Plaza which they described as a sort of “Mini Maker Faire” environment. They also asked if I could do a hands-on make-and-take workshop, so I decided to do a Learn to Solder activity. I’ll attempt to walk through my process for developing it in this and future posts.

Fritzing

Since I’ve been using Fritzing to design PCBs I thought I would play around with some ideas. The basic Learn to Solder kit tends to revolve around an LED or two, a battery, and maybe a pin of some sort. They are typically wearable badges. (Here’s a prototype and final board from Milwaukee Makerspace. Maker Shed has some nice ones as well.)

Fritzing

Oh, and ignore than second resistor, that was just to determine some spacing issues. Same with the battery. Fritzing isn’t the greatest tool for PCB design, but it (mostly) works and it’s simple to use. I did end up checking a version of this board with OSH Park to determine pricing and specs, but eventually I decided that this isn’t the board I wanted fabbed, and with a deadline quickly approacing I decided to go another direction.

I did use the work from Fritzing as the basis of the design I did in Inkscape though… And why Inkscape? Because my plan was to create this kit as cheaply as possible, which meant I’d be etching my own boards. I visited my friends over at ebay.com and started searching for components. I’ve ordered blank copper boards before so I got a bunch of those, and some LEDs and the appropriate resistors, and some batteries.

PCB versions

The evolution of design. The nice thing about etching your own boards is that you can do a few, test them out, and make some changes, and do it all again. You can do these revisions fairly quickly and very cheaply. Here’s a number of my design tweaks as I etched boards. Some things got larger, some got smaller. I needed something I could easily cut from vinyl using a Silhouette Cameo, so super-small pieces had to be avoided. The minus sign caused the most problems. You can see it change in size as we go. (The outline around each board is to assist with cutting them out.)

PCBs

Here’s the design 6-up so I could fill a blank copper board for etching. Weeding the vinyl wasn’t a nightmare, but pulling all the tiny pieces off the final board wasn’t fun.

Silhouette

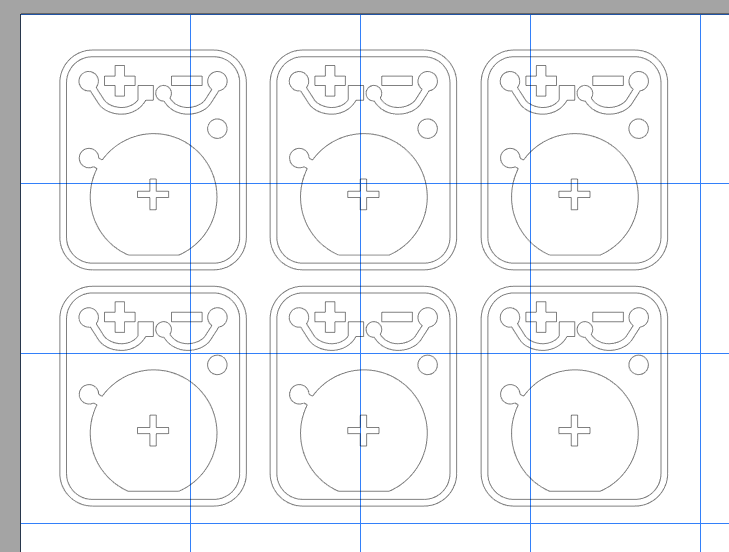

The copper boards I used are about 4″ x 3″ so the 6-up layout I did was loaded into the Silhouette Studio software to cut the vinyl. This worked well as I tend to have a lot of little scraps from bigger jobs to use up. (I did mention doing this on the cheap, didn’t I?)
